Dose rate and activity measurement in radiation protection especially at workplaces, in nuclear facilities, hot cells, nuclide laboratories and similar facilities, as well as for environmental monitoring networks near nuclear facilities.

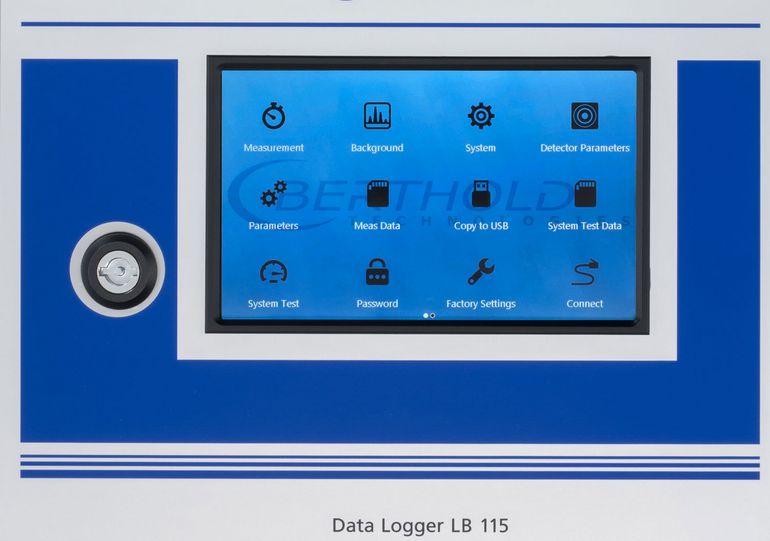

Display of the current measured values on site both numerically and graphically. Communication and power supply with almost all Berthold probes via wheel I/O box. Connection to database software optionally possible.
|Display||colour display, 7’’ touch panel, 800 x 480p|
|Data memory||up to 10,000 measured values|
|Power supply||100-240 VAC, 50/60 Hz|
|Temperature range||-25 to +50°C|
|Relative humidity||0 to 93 %, (at +35°C), non-condensing|
|Dimensions||approx. 300 x 250 x 100 (h x w x d) mm3|
|Weight||approx. 5.5 kg|
|Power supply||+15 V/-15 V (<60 mA), +5V (<200 mA)|
|Dimensions||approx. 90 x 115 x 55 mm|
|Weight||approx. 0,5 kg|
|Temperature range||-25 to +55°C|
|Relative humidity||0 to 93 %, (at +35°C) non-condensing|
