Highlights
General
- The 19“-rack design enables the usage in a desktop housing or as a rack mounted device
- Compact and visually attractive design and equipped with a colored touch screen
- Universal multi-counter data aquisition system

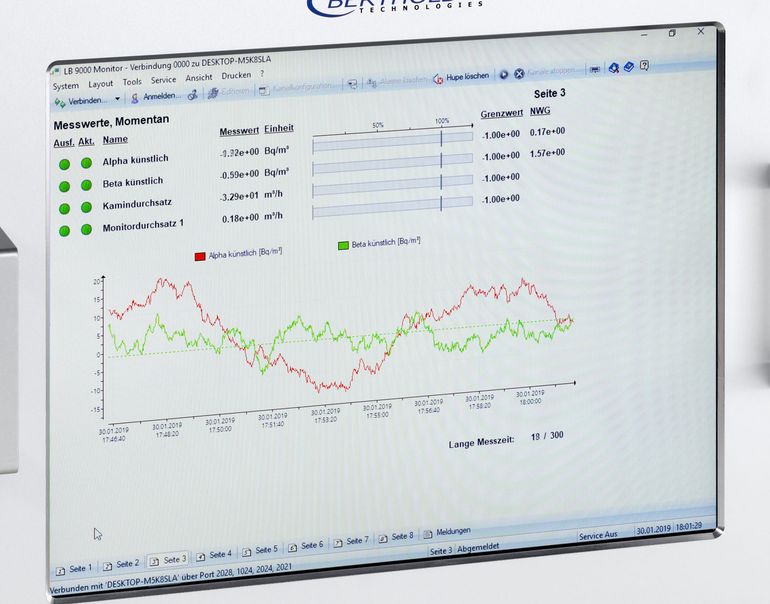

- Visualisation of the measurement values and graphs on 8 freely definable user screens
Features

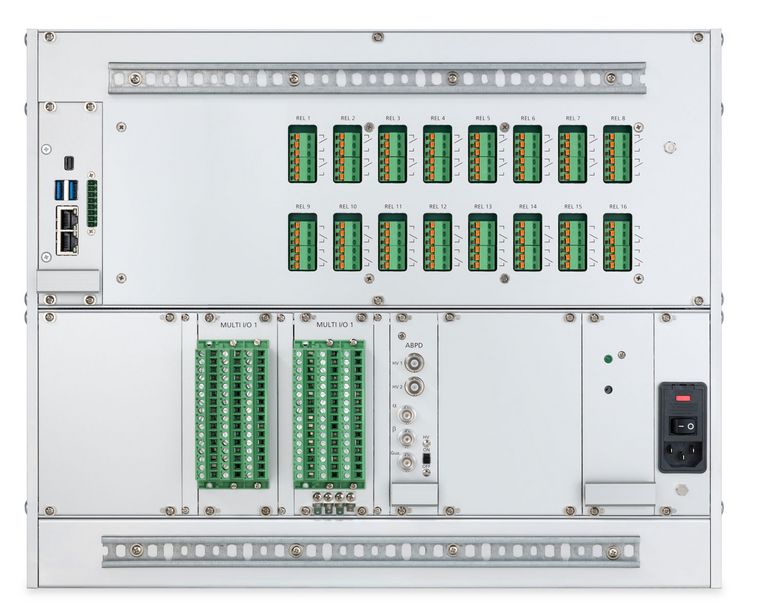

- Back panel: 1 x USB port, 1 x Ethernet, 1 x Parallel (printer), 1 x mouse connection, 1 x keybaord
- Front panel:1 x USB port
- Integrated service tools for quality assurance and periodical tests
- FIFO data memory with 10.000 values per channel
- Embedded watchdog function
Software System
- Can be configured by the user
- Operating system: Windows 10 IoT
- The configuration of the virtual channels is individually programmable for each channel
- All measured values, different integral values and exceeding or not reaching limit values can be monitored and outputted depending on the user's requirements
- The acces levels are secured by two passwords
Product Overview
LB 9000
Software System
The Data Logger features the latest state of the art technology and a technically mature software system that can be configured by the user. It takes over the complete control of all modules, calculation and integral calculation as well as the graphical presentation on the screen.
All measured values, different integral values and exceeding or not reaching limit values can be monitored and outputted depending on the user's requirements.
The configuration of the virtual channels is individually programmable for each channel via provided software assistants. Averaging algorithms (rate meter or moving average) and alarm thresholds can be selected.
Besides the definition of radiometric channels the configuration of the digital in- and outputs as well as the relay outputs are possible.
Technical Data
| Mechanical Data | |
| Hardware | 19“ rack, desktop housing or rack mounting device |
| Processor board | mini-PC, 7“ TFT-Monitor with touch screen |
| Interfaces | back panel: 3 x USB port, 1 x Ethernet, 2 x RS 232 |
| Ambient Conditions | |
| Temperature range | 0°C to 50°C |
| Relative humidity | 20% to 80%, non-condensing |
| Software | |
| Data buffer | 10.000 measurement records per channel |
| Watchdog function | integrated into the relay board firmware |
| Back up function | parameter up-/download for external back up, setup configuration report in rtf format |
