Highlights
General
- The 19“-rack design enables the usage in a desktop housing or as a rack mounted device

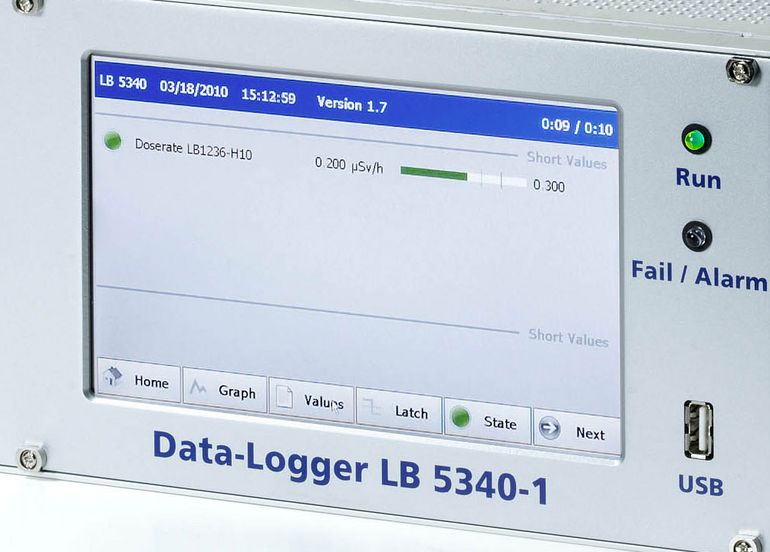

- Compact and visually attractive design and equipped with a colored touch screen
- Universal data acquisition system for various radiation protection applications
- Modular design: allows insertion of up to 6 different peripheral boards
Features
- Back panel: 2 x Ethernet, 1 x USB port; Front panel: USB host (keybord-mouse, printer or memory stick)
- TFT touch display with fluorescence-backlight
- Alarm and status page
- FIFO data memory with 1000 values per channel
- Embedded watchdog function
Software System
- Can be configured by the user
- Operating system: Windows 10
- The configuration of the virtual channels is individually programmable for each channel
- The acces levels are secured by two passwords
- Software can display up to 8 measuring channels
Product Overview
LB 5340
Software System
The LB 5340 features the latest state of the art technology and a technically mature software system that can be configured by the user. An attractive and user-friendly user guidance allows a smooth configuration of the parameters. The configuration of the virtual channels is individually programmable for each channel via provided software assistants, for example parametrization of the channels or allocation of averaging algorithms (rate meter or moving average).
Besides the definition of radiometric channels the configuration of the digital in- and outputs as well as the relay outputs are possible.
There are various service functions: Background measurement, determination of calibration factors, plateau measurement and determination of pseudocoincidence factors.
Technical Data
Mechanical Data | |
Hardware | 19“ rack, desktop housing or rack mounting device |
Processor board | mini-PC, 7“ TFT-Monitor with touch screen |
Interfaces | back panel: 3 x USB port, 1 x Ethernet, 2 x RS 232 |
Ambient Conditions | |
Temperature range | 0°C to 50°C |
Relative humidity | 20% to 80%, non-condensing |
Software | |
Data buffer | 10.000 measurement records per channel |
Watchdog function | integrated into the relay board firmware |
Back up function | parameter up-/download for external back up, setup configuration report in rtf format |
