Brochure of the LB 2046 Portable Alpha-Beta-Activity Measuring System
PDF | 911.6 KBDownload now
Simultaneous and separate alpha and beta measurement

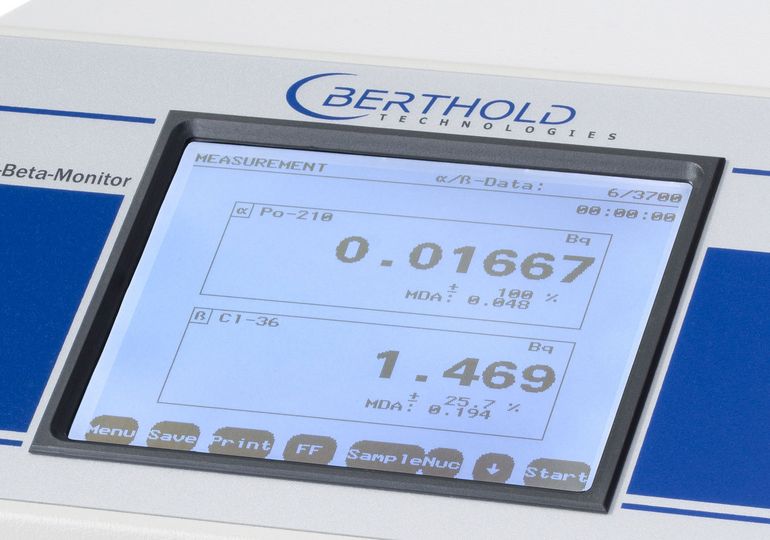

Simple operation with graphic display and touch panel
The touch sensitive graphic display offers an intuitive user interface with simple and fast access to important measuring routines: With the background routine the Alpha and Beta background subtraction is provided and stored for the correction of the measured value. The calibration routine permits the calibration of the detector for different nuclides. With the system test a performance check for the instrument can quickly be achieved.
|Weight||approx. 15 kg (LB 2046), approx. 25 kg (LB 2046-130)|
|External dimensions||285 mm x 250 mm x 330 mm (H x W x L)|
|Interfaces||USB, serial, parallel, Ethernet (optional)|
|Temperature range||–5 to +40 °C|
|Rel. humidity||0 to 90 % (no condensation)|
|α- in β-channel (241Am)||< 50%|
|β- in α-channel (90Sr)||< 2.0 x 10-5|
|0 - 5 000 cps|
0 - 50 000 cps
