The Moving Filter | |
Filter transport | continuous or stepwise |
Dust collection area | 4π lead shild |
Flow rate | 25 m³/h |
Measuring range | < 1 mBq/m³ |

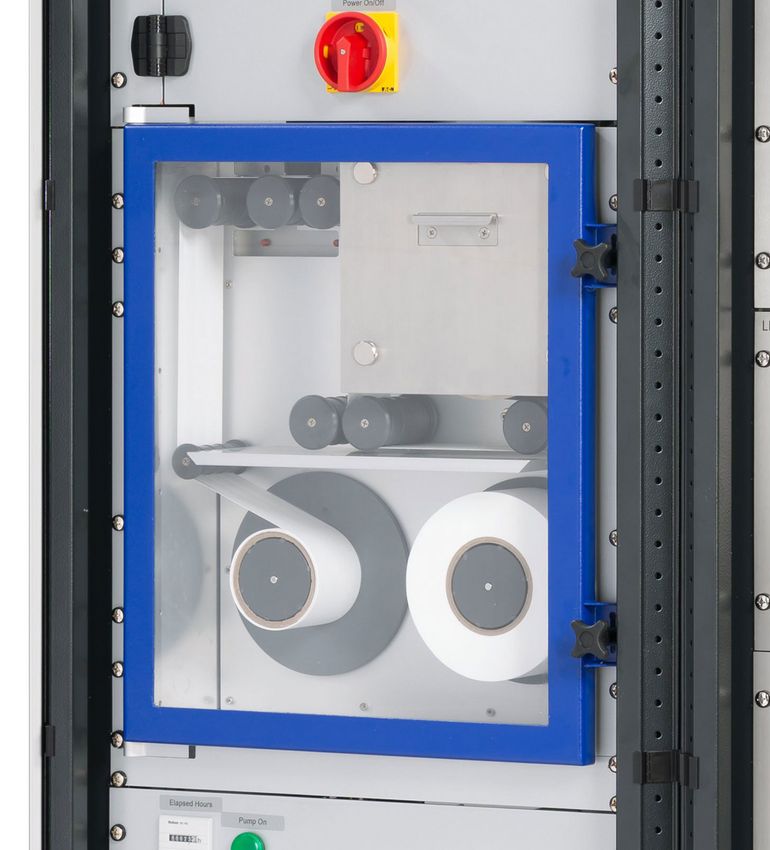

Filter Casette | |
Structural shape | 19” casette, IP68 |
Construction material | alu side & backplate, plexi cover front |
Pump unit | |
Pump | suited for temperatures up to 45°C equipped with a maintenance free lateral blower pump |
Flow rate | 25 m³/h |
Detection Limits | |
Continuous filter speed | 10 mm/h (based on DIN 25482) |
Peripheral Interfaces | |
Current outputs | 0/4-20 mA LIN/LOG |
Current inputs | 0/4-20 mA |
interfaces | RS232/V24 or other |
