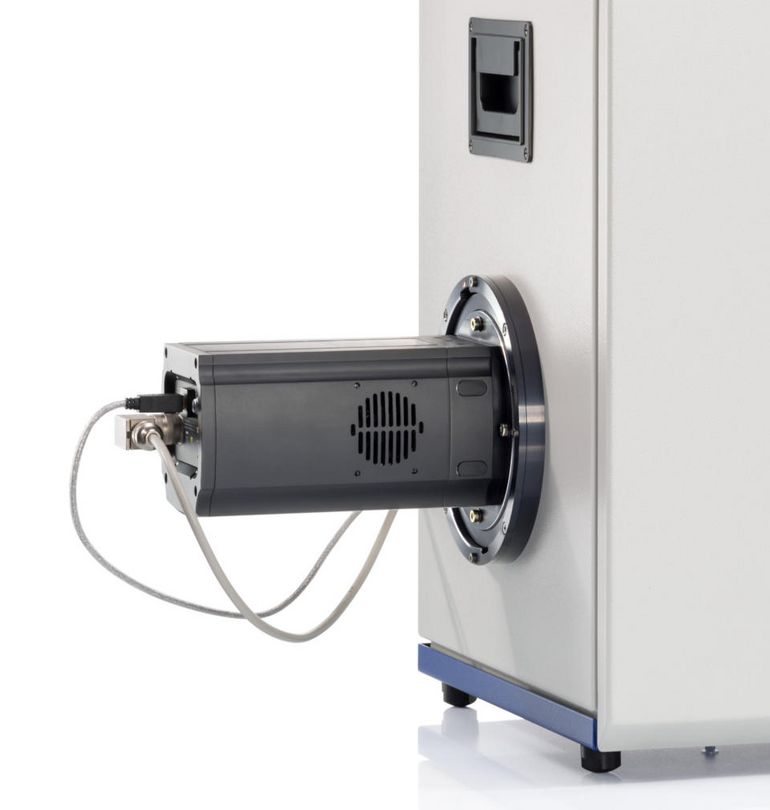

Download nowThe NightShade uses an ultrasensitive back-illuminated (backlit) CCD camera with high quantum efficiency over the entire visible to near-infrared spectrum. Cooling to a delta of -100°C ensures the lowest background and highest sensitivity, even at long exposure times. In addition, the camera can be mounted either on top of the instrument to take images from above or laterally for side view images, enabling you to maintain seedlings upright in their natural vertical orientation.
The NightShade helps creating a standardized environment for your experiment.
The NightShade provides a light-tight imaging chamber that you can set up according to your experimental needs:
The user-friendly IndiGO™ software controls the instrument and makes image processing easy. It provides the following innovative features:
Daylight simulation: a set of 2 LED panels, 4 colours each can be mounted at different heights inside the imaging chamber for daylight simulation. With IndiGO™ software you can control intensity and duration of each colour individually to provide homogeneous illumination up to 1,800 μE or 15,000 Lux.
Camera type | Back-lit midband-coated full frame chip, 1024 x 1024 pixel, slow scan mode | |
---|---|---|
Pixel size | 13 x 13 µm | |
Spectral range | 350-1050 nm | |
Quantum efficiency | 90% at 620 nm | |
Pixel binning | Variable to increase sensitivity, up to 16x16 | |
Exposure times | From ms to hours | |
CCD cooling | Thermoelectrical air cooling down to -70° C |
Size | 25 mm, f 0.95 C-mount for most efficient light collection |
---|---|
Field of view | Standard lens: 270 x 270 mm XT version: 320 x 320 mm Macro lens: 130 x 130 mm |
Lamp type | 75 W halogen lamp |
---|---|
Spectral range | 340-750 nm |
Inner dimensions | 520 x 400 x 360 (W x H x D) |
---|---|
Connections | Flange for light tight port, mounting areas for side view mounting option and LED panels, software-controlled mains socket. |
Power Supply | 110-240 V, 50/60 Hz; max 400 VA; minimum 4 free sockets |
---|---|
Temperature range | Max 30° C |
Humidity | 10-80%, non-condensing |
Bench | Load capacity of at least 45 kg (weight of instrument); minimum size 900 x 600 mm (W x D) plus space for PC |
Software | IndiGO™ software for instrument control and data analysis |
---|
Regulations | CE, EN |
---|---|
Dimensions (W x D x H) | 600 x 400 x 920 mm |
Weight | 85 kg |
Brochure of the NightShade LB 985 In Vivo Imaging System
PDF | 3.2 MB
Download nowThe expression of a novel EnduRen™ and ViviRen™ Renilla luciferase reporter gene...
PDF | 385.0 KB
Download nowTrans-illumination – a Solution for Excitation of GFP Expressing Plants in Petri...
PDF | 484.8 KB
Download nowGetting to Know The Circadian Clock and Plant Growth With NightSHADE
PDF | 170.2 KB
Download nowMeasurement of Delayed Fluorescence in Plants - a Monitoring System for Stress...
PDF | 560.7 KB
Download nowDetection of Fluorescence in Transgenic Arabidopsis Lines Expressing...
PDF | 840.6 KB
Download nowImproved experimental setup for analysis of circadian rhythms using the...
PDF | 479.1 KB
Download nowMeasurement of Biophoton Emission in Plants – An Alternative Monitoring System...
PDF | 1.4 MB
Download nowv2.0.5.0. For for image acquisition and analysis using the NightOWL or...
EN | ZIP | 47.7 MB
Protected DownloadBrochure of the NightShade LB 985 In Vivo Imaging System
PDF | 3.2 MB
Download nowThe expression of a novel EnduRen™ and ViviRen™ Renilla luciferase reporter gene...
PDF | 385.0 KB
Download nowTrans-illumination – a Solution for Excitation of GFP Expressing Plants in Petri...
PDF | 484.8 KB
Download nowGetting to Know The Circadian Clock and Plant Growth With NightSHADE
PDF | 170.2 KB
Download nowMeasurement of Delayed Fluorescence in Plants - a Monitoring System for Stress...
PDF | 560.7 KB
Download nowDetection of Fluorescence in Transgenic Arabidopsis Lines Expressing...
PDF | 840.6 KB
Download nowImproved experimental setup for analysis of circadian rhythms using the...
PDF | 479.1 KB
Download nowMeasurement of Biophoton Emission in Plants – An Alternative Monitoring System...
PDF | 1.4 MB
Download nowv2.0.5.0. For for image acquisition and analysis using the NightOWL or...
EN | ZIP | 47.7 MB
Protected DownloadThere are plenty of articles in the scientific literature using the NightShade in vivo imaging system for plants. Here you have a selection of recent papers.
Year | Authors | Journal | Title |
---|---|---|---|
2020 | Laura Medina-Puche, Huang Tan, Vivek Dogra, Mengshi Wu, Tabata Rosas-Diaz, Liping Wang, Xue Ding, Dan Zhang, Xing Fu, Chanhong Kim, and Rosa Lozano-Duran | Cell | A Defense Pathway Linking Plasma Membrane and Chloroplasts and Co-opted by Pathogens |
2020 | Ildikó Jócsák, Isaac Malgwi, Gyula Rabnecz, Anita Szegő, Éva Varga-Visi,György Végvári*, Zsolt Pónya | PLoS One | |
2020 | Jian Li, William Terzaghi, Yanyan Gong, Congran Li, Jun-Jie Ling, Yangyang Fan, Nanxun Qin, Xinqi Gong, Danmeng Zhu & Xing Wang Deng | Nature Communications | Modulation of BIN2 kinase activity by HY5 controls hypocotyl elongation in the light |
2019 | Keqin Chen, Mengru Song, Yunna Guo, Lifu Liu, Hao Xue, Hongyan Dai, and Zhihong Zhang | Plant Biotechnology Journal | MdMYB46 could enhance salt and osmotic stress tolerance in apple by directly activating stress-responsive signals |
2019 | Huixue Dong, Suli Yan, Jie Liu, Pan Liu and Jiaqiang Sun | Plant Biotechnology Journal | TaCOLD1 defines a new regulator of plant height in bread wheat |
2019 | Heshan Du, Changlong Wen, Xiaofen Zhang, Xiulan Xu, Jingjing Yang, Bin Chen * and Sansheng Geng * | International Journal of Molecular Sciences | Identification of a Major QTL (qRRs-10.1) That Confers Resistance to Ralstonia solanacearum in Pepper (Capsicum annuum) Using SLAF-BSA and QTL Mapping |
2019 | Yexing Jing, Jie Liu, Pan Liu, Dongfeng Ming & Jiaqiang Sun | Scientific Reports | Overexpression of TaJAZ1 increases powdery mildew resistance through promoting reactive oxygen species accumulation in bread wheat |
2019 | Yuan Lin, Fanli Meng, Chao Fang, Bo Zhu and Jiming Jiang | Plant Methods | Rapid validation of transcriptional enhancers using agrobacterium‑mediated transient assay |
2018 | Louise F. Thatcher, Rhonda Foley, Hayley J. Casarotto, Ling-Ling Gao, Lars G. Kamphuis, Su Melser & Karam B. Singh | Scientific Reports | The Arabidopsis RNA Polymerase II Carboxyl Terminal Domain (CTD) Phosphatase-Like1 (CPL1) is a biotic stress susceptibility gene |
You can find additional publications which have used the Berthold NightShade in publication databases.
Please keep in mind that the list provided is not exhaustive, but it offers valuable examples of experiments performed with our instruments and published in peer-reviewed journals.
